Hot-Dip Galvanized Greenhouse Pipe

Tianjin Juming Steel Pipe Co., Ltd. supplies Hot-Dip Galvanized Greenhouse Pipe for agricultural structures requiring steel framing and corrosion protection. Available in Q195 and Q235B steel grades, the pipes combine a welded steel tube structure with a zinc coating to protect the underlying steel from environmental exposure.

Standard dimensions include outer diameters from 20 to 60 mm and wall thicknesses from 1.2 to 2.5 mm. The standard pipe length is 6 m, with 9 m and 12 m lengths available. These dimensions support the fabrication of greenhouse arches, columns, cross-members, and other structural components.

Custom cutting, punching, bending, and swaging services allow the pipe sections to be processed for different frame layouts. Material grade, diameter, wall thickness, and coating thickness are the main specifications for selecting greenhouse pipe for a particular structure.

01Product Specifications

02Hot-Dip Galvanizing Process

Hot-dip galvanizing applies a zinc coating to the steel surface by immersing the steel component in molten zinc. The process forms a metallurgical bond between the zinc coating and the steel substrate, providing a barrier against moisture and oxygen while allowing the zinc to offer sacrificial corrosion protection where the coating is locally damaged.

For greenhouse pipe, coating thickness is an important factor in assessing corrosion protection and expected service life. Tianjin Juming Steel Pipe Co., Ltd. specifies an average zinc coating thickness of at least 80 μm and a local minimum of 60 μm for the product described here.

Actual corrosion performance depends on coating uniformity, surface condition, humidity, fertilizer and pesticide exposure, coastal salt exposure, and maintenance conditions. The specified coating thickness provides a measurable procurement parameter for comparing products and quality documentation.

03Core Product Advantages

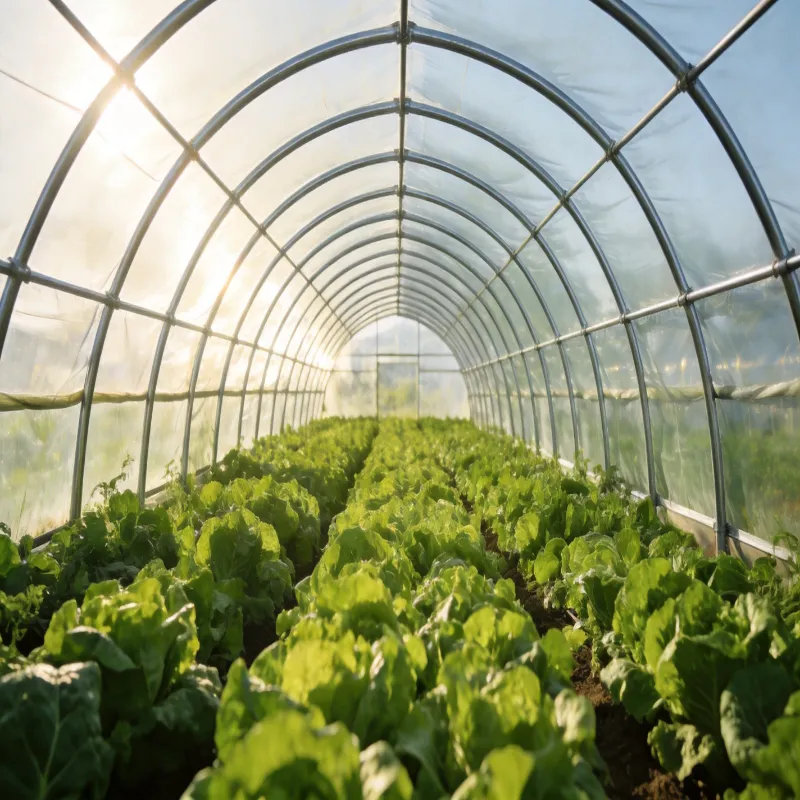

04Application Scenarios

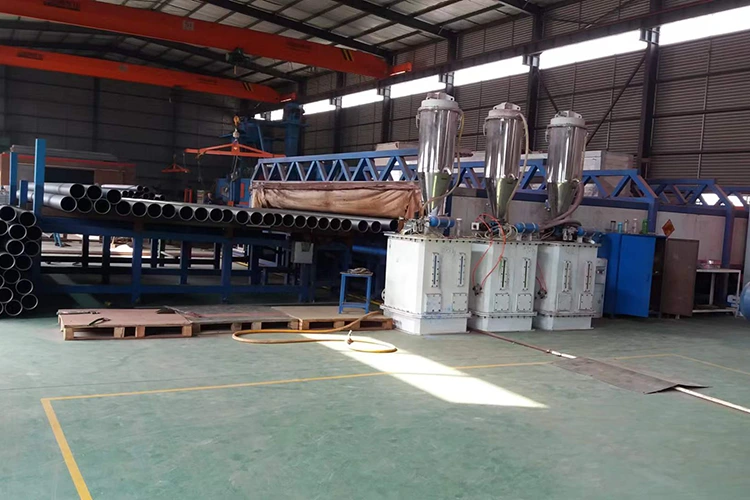

05Processing Capability and Manufacturing

Tianjin Juming Steel Pipe Co., Ltd. was established in 2015 and is located in Daqiuzhuang Town Industrial Park, Jinghai District, Tianjin, China. The company reports a production area of approximately 8,000 m² and a workforce of nearly 70 employees, including 18 technical staff.

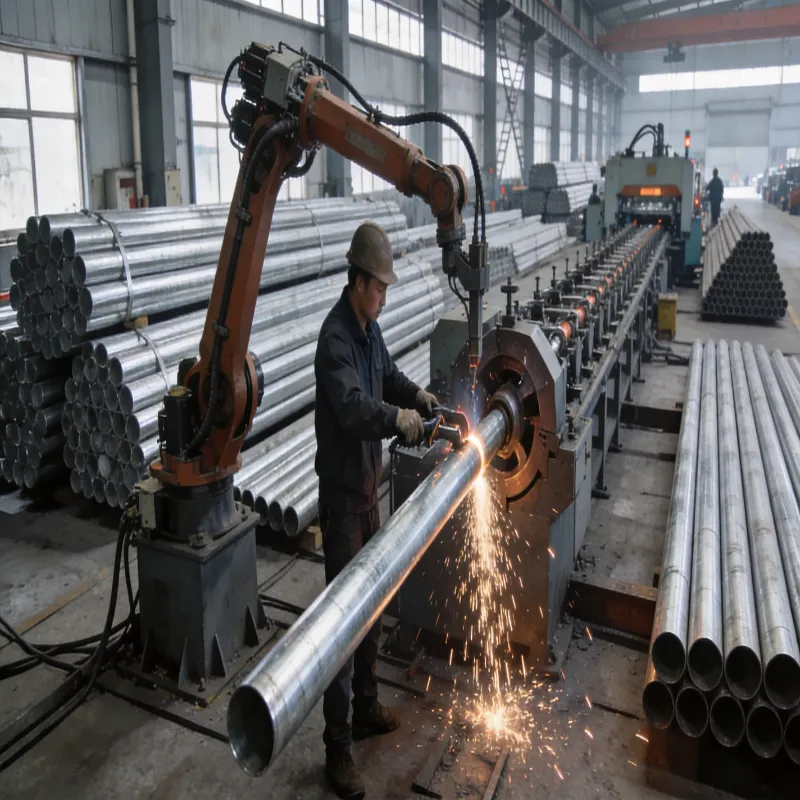

Its production and processing services include steel pipe manufacturing, cutting, punching, bending, and swaging. The company reports cutting accuracy of ±1 mm and burr-free edges. These capabilities are relevant to greenhouse projects requiring dimensioned pipe sections and prepared connection points.

The company also states that it operates under an ISO 9001 quality management system. Material certificates and third-party testing can support inspection and documentation requirements for individual orders. Details are available on the qualification certificate page.

06Purchasing Information and Delivery

Orders can be specified by steel grade, outer diameter, wall thickness, pipe length, zinc coating thickness, and processing requirements. These details provide a clear basis for quotations, production planning, and shipment arrangements.

07About Tianjin Juming Steel Pipe Co., Ltd.

Tianjin Juming Steel Pipe Co., Ltd. is based in Daqiuzhuang Town Industrial Park, Jinghai District, Tianjin, China. Its product range includes greenhouse pipes and other steel pipe products for industrial, construction, and agricultural applications.

The company provides steel pipe manufacturing and processing services, with options for customized dimensions, prepared pipe sections, material documentation, and delivery arrangements. Browse the full catalog on the products page, including structural steel shapes and steel plates and coils.
