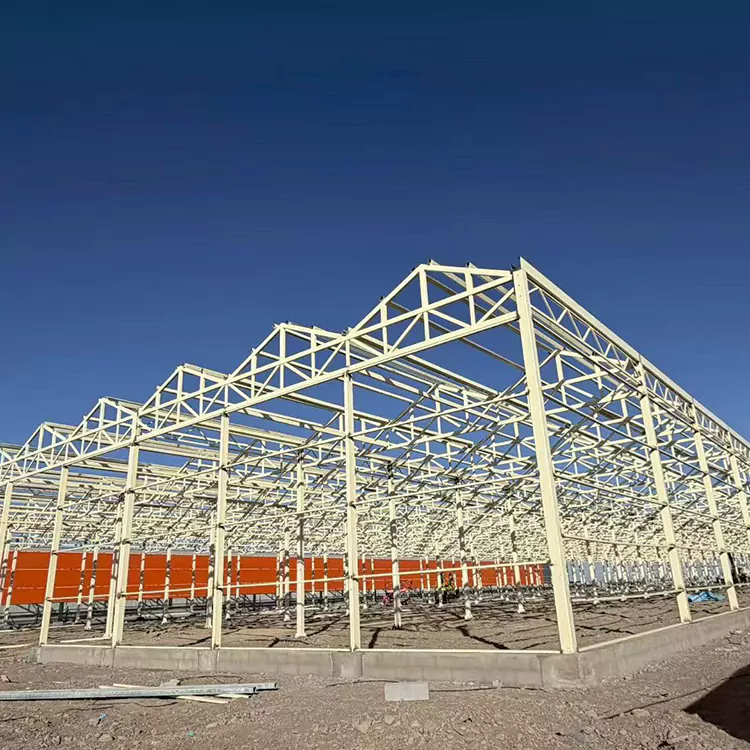

Galvanized Steel Greenhouse Frame

Tianjin Juming Steel Pipe Co., Ltd. specializes in providing high-quality Galvanized Steel Greenhouse Frames, the core load-bearing structure for modern agricultural facilities. Our products utilize hot-dip galvanized steel and a scientifically designed mechanical structure, offering advantages such as corrosion resistance, high load-bearing capacity, and easy installation. They can be applied to various planting scenarios, including vegetables, fruit trees, flowers, and seedling greenhouses, helping farmers achieve high-yield and efficient planting throughout the year. Choose a professional frame to lay a solid foundation for a bountiful harvest and maximize the value of every inch of land.

What are the core advantages of our product?

1. Upgraded Materials, Durable for Over 20 Years

Hot-dip Galvanizing Process: The zinc layer on the surface of the Advanced Galvanized Steel Greenhouse Frame is 65-100μm thick, withstanding over 5000 hours of salt spray testing. It easily withstands humid and acid rain environments, and its service life is more than 3 times that of ordinary steel pipes.

High-Quality Steel: Made of Q235B low-carbon steel, with a yield strength ≥235MPa and tensile strength 375-500MPa, ensuring stable and reliable frame performance in environments ranging from -30℃ to 70℃.

2. Optimized Mechanics, Strong Wind and Snow Resistance

Scientific Structural Design: The triangular/arched frame can be customized according to different regional climates. In northern regions, it can withstand level 12 strong winds (30m/s) and 0.5m of snow accumulation (≥20kg/㎡); in rainy southern regions, the design incorporates a drainage slope ≥25° to prevent water seepage.

Node Reinforcement: Hot-dip galvanized stamped parts + bolt fastening, shear strength up to 15kN, installation error ≤2mm, ensuring the overall frame is sturdy and secure.

3. Flexible Customization to Meet Diverse Needs

Complete Specifications: Span 3-15m, shoulder height 1.8-3.5m, roof height 3-5m, supporting single-span, multi-span, and solar greenhouse types.

Complete Components: Includes insect-proof net slots, film rolling brackets, film pressing line hooks, etc., allowing for customized installation of shading, ventilation, and drip irrigation systems.

4. Convenient Installation, Saving Labor Costs

Modular Design: Factory prefabricated standard parts, requiring only bolt assembly on site. A two-person team can install 300㎡ per day, saving 50% of labor time compared to traditional welding.

Lightweight Advantage: The High-Performance Galvanized Steel Greenhouse Frame weighs only 8-15kg/㎡, eliminating the need for large hoisting equipment, suitable for transportation in hilly or complex terrain.

Technical Specifications

Core Applications

Customer Success Stories

Shouguang Vegetable Base, Shandong: 10m-span multi-span frame with integrated fertigation system, winter cucumber yield 28,000 kg/acre, +35% compared to traditional greenhouses.

Xinjiang Cotton Seedling Project: Anti-wind frames withstand spring sandstorms, seedling cycle shortened by 15 days, transplant survival rate 98%.

Why Choose Juming Steel Pipes?

Warranty & Reliability: 10-year structural warranty, lifetime maintenance guidance, free replacement for non-human-caused damage.

Professional Support: Free greenhouse design, soil testing, crop planting advice, and assistance with agricultural subsidies (30%-50% subsidy available in eligible areas).

Rapid Response:24/7 support, emergency response within 4 hours, on-site service within 24 hours (local) or 48 hours (remote areas).

Training:Regular greenhouse training courses with on-site guidance.

Spare Parts Supply: Nationwide coverage, common parts delivered within 3 days, special parts within 7 days.

Logistics Services: Partnering with major logistics companies to ensure safe and timely delivery nationwide.

FAQ

Q1: Can Galvanized Steel Greenhouse Frames be customized?

A1: Yes. We support customized spans, shoulder heights, ridge heights, and single/multi-span designs to meet your agricultural needs.

Q2: What is the galvanized layer thickness? How is the corrosion resistance? A2: The galvanized layer thickness is 65–100μm, with a salt spray test time >5000 hours, effectively resisting the effects of humidity, acid rain, and coastal environments.

Q3: Is installation difficult? Is heavy machinery required?

A3: No. The modular design allows a two-person team to install 300㎡ per day without heavy lifting equipment, saving manpower and time.

Q4: What is the service life of the Durable Galvanized Steel Greenhouse Frame?

A4: Outdoor service life ≥30 years. Durable steel and corrosion protection ensure its long-term performance.

Q5: Does Juming provide after-sales support?

A5: Yes. We provide 24/7 technical support, on-site guidance, training, and spare parts supply to ensure stable greenhouse operation.

Contact Juming Steel Pipe Now

Request free samples, technical support, or a quotation. Experience high-quality Galvanized Steel Greenhouse Frame, fast delivery, and dedicated service from a reputable Chinese manufacturer.
