Dual Layer External Coating Pipe
  • Dual Layer External Coating PipeDual Layer External Coating Pipe

Dual Layer External Coating Pipe

Dual Layer External Coating Pipes with inner and outer flame-retardant and anti-static FBE coating, designed for natural gas, LPG, and biogas transmission. Suitable for buried and overhead pipelines in municipal gas networks, industrial zones, and overseas energy projects, with corrosion resistance and pressure stability.

    Tianjin Juming Steel produces Dual Layer External Coating Pipes for municipal and overseas gas infrastructure. Made from high-quality carbon steel, the pipes feature inner and outer flame-retardant, anti-static FBE epoxy coating. Pipes provide corrosion resistance, static dissipation, high-pressure tolerance, and low friction for gas flow, suitable for natural gas, LPG, and biogas. Widely used in urban gas networks, industrial parks, and overseas energy projects as FBE-coated underground and overhead gas pipelines.

    Core Advantages

    1. Dual-Resistance Safety

    Anti-Static: Epoxy coating dissipates frictional static quickly, eliminating spark risk during gas transportation.

    Flame-Retardant: High oxygen index material, self-extinguishing when away from fire, resists ignition and flame propagation, improving safety in gas networks.

    2. Performance Features

    Corrosion Resistance: Double-layer FBE epoxy protects against acid, alkali, salt, and groundwater corrosion. Suitable for buried installation in saline, humid, or underground conditions.

    Efficient Gas Transport: Smooth internal surface reduces friction and energy loss, suitable for long-distance gas delivery.

    Coating Adhesion: Base metal prepared to Sa2.5, strong coating adhesion ensures minimal peeling or damage during backfilling, welding, or handling.

    Temperature Range: Operates from -30°C to 100°C, adaptable to diverse climates including tropical, cold, and high-altitude projects.

     Pressure Stability: Suitable for medium and high-pressure networks, tight sealing, zero leakage risk.

    Technical Specifications

    Item Specification
    Product Name Dual Layer External Coating Pipe, Flame-Retardant Anti-Static Coated Pipe, FBE Epoxy Coated Gas Steel Pipe
    Base Material Q235B, Q355B, 20#, API 5L Gr.B, X42-X70
    Pipe Type Seamless, Longitudinal Welded, Spiral Flame-Retardant Anti-Static Steel Pipe
    Diameter DN50 – DN1600 (2” – 64”)
    Wall Thickness 2.5mm – 22mm (customizable per pressure rating)
    Standard Length 6m, 12m, 3–18m custom length
    Coating Inner & Outer Flame-Retardant, Anti-Static FBE Epoxy

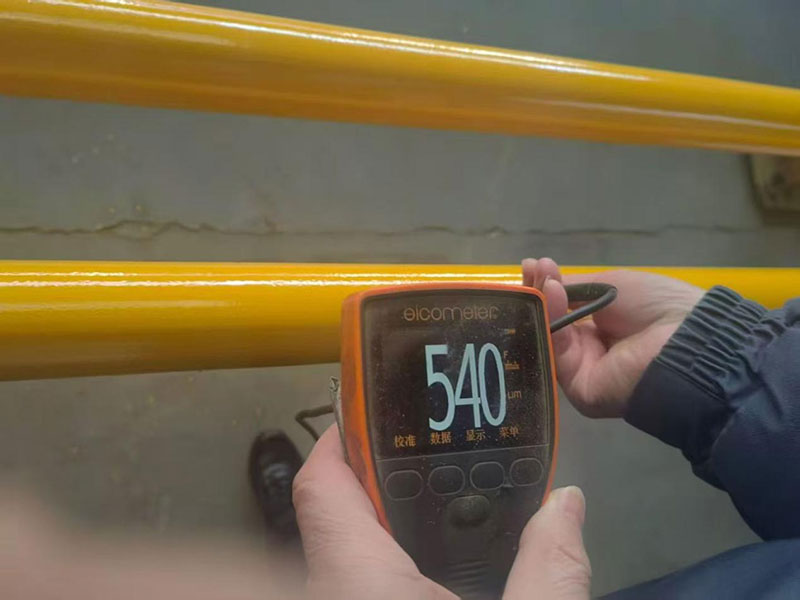

    Coating Thickness 120 – 450μm (customizable)
    Features Flame-retardant, Anti-static, Anti-corrosion, Pressure-resistant, Wear-resistant
    Connection Plain End, Beveled End, Flange, Grooved, Socket Weld
    Application Buried, Overhead, Pipeline gallery gas transport
    Standards GB/T, ISO, AWWA, DIN

    Applications

    Urban gas main pipelines & residential connections Industrial park or factory private gas pipelines Overseas infrastructure and cross-border energy projects LPG, artificial coal gas, biogas transport pipelines Pipeline galleries, overhead pipes, gas station process pipelines

    Production & Quality Assurance

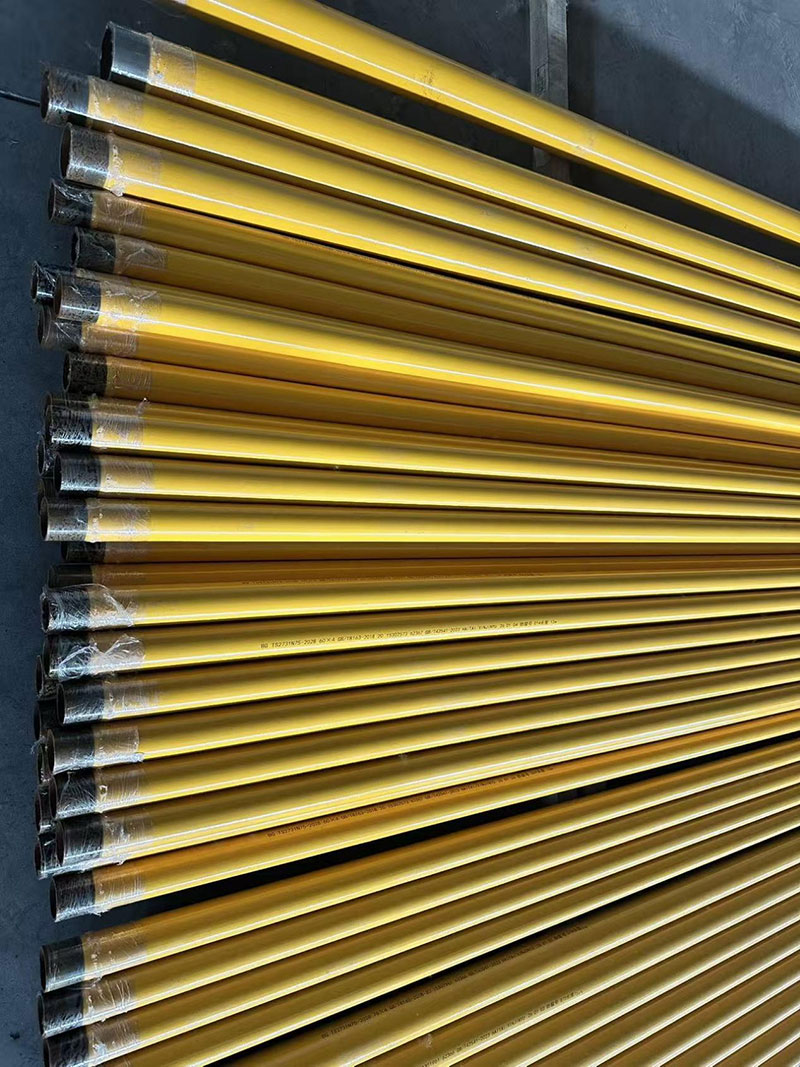

    ✔ Fully automated inner/outer epoxy coating line
    High-standard surface preparation for strong adhesion
    ✔ 100% hydraulic & pressure testing
    per pipe with flame-retardant batch certification
    ✔ Third-party inspection support
    SGS, BV for export and project compliance

    Export & Supply Advantages

    Factory direct supply
    Tianjin base, controlled quality & competitive pricing
    Stable capacity
    >6,000 tons/month, large infrastructure orders
    Fast delivery
    10–18 days for bulk orders after deposit
    Trade terms
    FOB, CFR, CIF, DAP
    Complete export docs
    Certificate of Origin, Material Cert, Test Report
    One-stop service
    Pipe fittings: elbows, tees, flanges

    Customization Services

    Supports diameter, wall thickness, length, coating thickness, pipe end type, pressure rating, and color. Custom designs can comply with various national and international project standards.

    Tianjin Juming Steel – Gas Infrastructure Division
    📧 Email: 18649193844@163.com | 📞 +86 18649193844 (support & export)

    Factory direct, dual-resistance FBE epoxy pipes certified for overseas energy projects.
